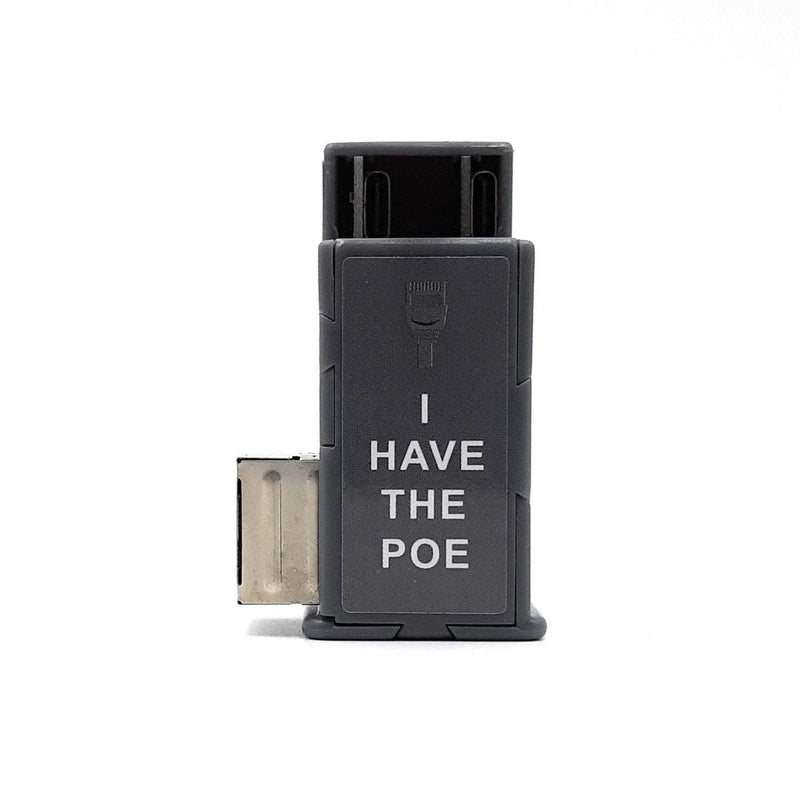

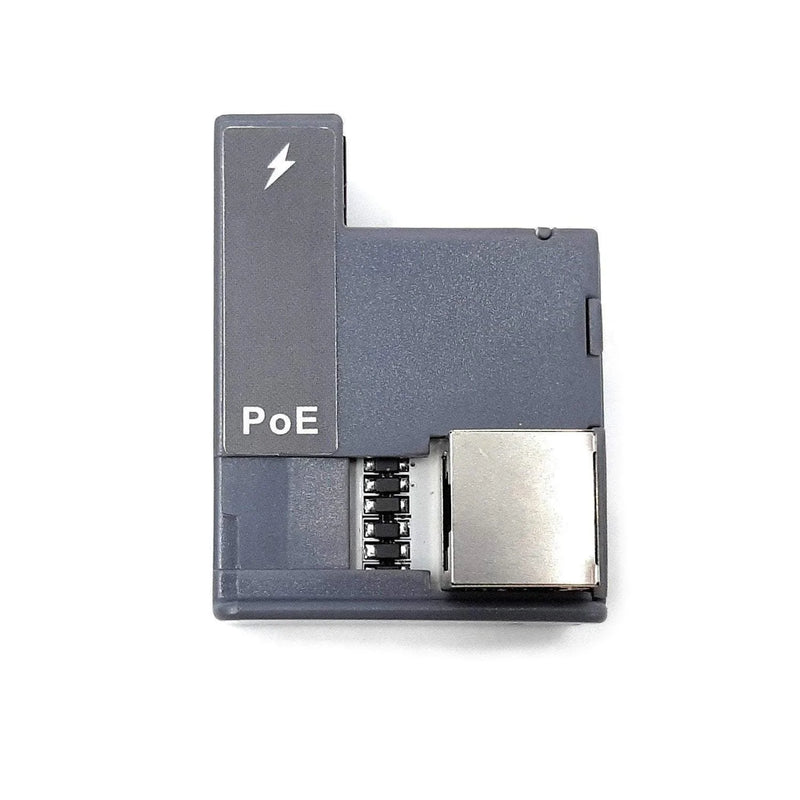

Heckler Ethernet and PoE+ Power USB-C Adapter for MX Wall Mount-T515

This USB-C adapter provides both Ethernet and PoE+ power in one convenient unit sized to fit in single-gang, double-gang, and European wall boxes. It delivers up to 25W of power and data transmission with a bandwidth of up to 100 Mbps, making it the ideal adapter for wall-mounted, current-generation iPad devices.

• Delivers both continuous USB-C power and data to your iPad.
• PoE technology allows you to extend power and data up to 328 feet from the source.
• Fits inside the standard US and European Junction Box

• Delivers both USB Type C power and 10/100 fast Ethernet data on one cable
• Plug-and-play design for easy installation
• 2.0 USB data standard output
• 25 Watt output - (5V2.6A, 9V1.78A, 12V1.34A,15V1.37A, 20V1.15A)
• Compatible with IEEE 802.3at PoE+ switch or injector.

• Specifications

  • Cable connectors
    USBC-USBC Right Angle Cable

    Connector Types
    USB-C Power + Data (Power Delivery) / USB-C Fast Charging Only

    Data + PoE Ports
    1 (Input) / 1 (Output)

    Data Rate
    10/100 Mbps

    Data Standard
    USB 2.0 (Output)

    Dimensions
    2.25x1.75x1.25 in

    Input Voltage Range
    44-57v PoE

    Max Power for Kit
    25 Watts / USBC negotiations (5V2.6A, 9V1.78A, 12V1.34A,15V1.37A, 20V1.15A)

    Mount Type
    Junction Box Receptacle

    Operating Humidity
    10 - 90%

  • Operating Temperature Range
    -10 to 40℃

    Output Voltage
    USB-C (5V2.6A, 9V1.78A, 12V1.34A,15V1.37A, 20V1.15A)

    PoE Method
    IEEE 802.3at; PoE+

    PoE Mode/Pinout
    Mode A/B

    PoE Standard
    IEEE 802.3at

    Power Input
    On Power Only Port - For devices drawing < 15 watts - Lenovo M10, MicroUSB devices, iPad 10.2 or Mini

    Storage Temperature
    -30 to 70℃

    Weight
    1.75 oz.
